RX6061-5 CNC Bending Machine

Sample Display

Technical Features of 600T/6100mm

Specification Parameters of RX CNC Bending Machine

Design Concept

The RX CNC bending machine is jointly developed, designed, assembled, and produced by Shandong Hongniu Zhonghui Company and Ruixin Laser Technology Co., Ltd.

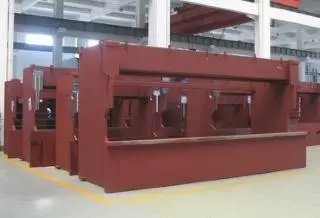

The structure and components of the machine are designed using 3D drawing and simulated using the latest generation FEM system for manufacturing. This not only ensures the high stability of the bending machine's structure, but also improves its service life. The machine tool has a simple and beautiful appearance, exquisite workmanship, and the mechanical processing and assembly of components are all meticulously crafted. The machine adopts an overall high-quality steel plate welding structure, with a thick and rigid frame. The surface of the machine is sprayed with imported anti rust primer and topcoat to make it last as good as new. The rack and upper working slider are processed by precision mother machines such as imported large-scale CNC floor boring and milling, ensuring the positional accuracy requirements of each installation surface.

We strictly adhere to the provisions of EN ISO 12100 in our production processes. EN ISO 12100, "Safety of machinery - Basic concepts, general principles for design", is a key standard in the field of machinery safety. It establishes basic concepts and general design principles to ensure the safety of machinery throughout its entire life cycle.

Hydraulic & Electronic Control

Dual feedback system: The double grating is installed on the workbench on both sides of the machine tool through a small frame to avoid measurement errors caused by the deformation of the slider under force; the grating ruler feeds back the slider position signal to the control system, and the control system controls various valves in the hydraulic system according to the signal, such as:
speed valve, pressure valve, proportional valve, etc., so as to ensure the parallel and multi-stage eccentric processing of the slider; the slider repetition accuracy reaches ±0.01mm.

• High-quality, precision-ground cylinder, low-wear, leak-free, chrome-plated and hardened piston rod.
• The sealing ring is selected from Japan NOK or Germany ECO, with good sealing performance, reliable operation and long service life.
• There is a clear and intuitive oil level and temperature display.
• The hydraulic system is equipped with overload protection function.
• The electrical components meet international standards, are safe and reliable, have strong anti-interference ability, and the electric control cabinet has heat dissipation function.
• With a movable foot switch operation, there is an emergency stop function.

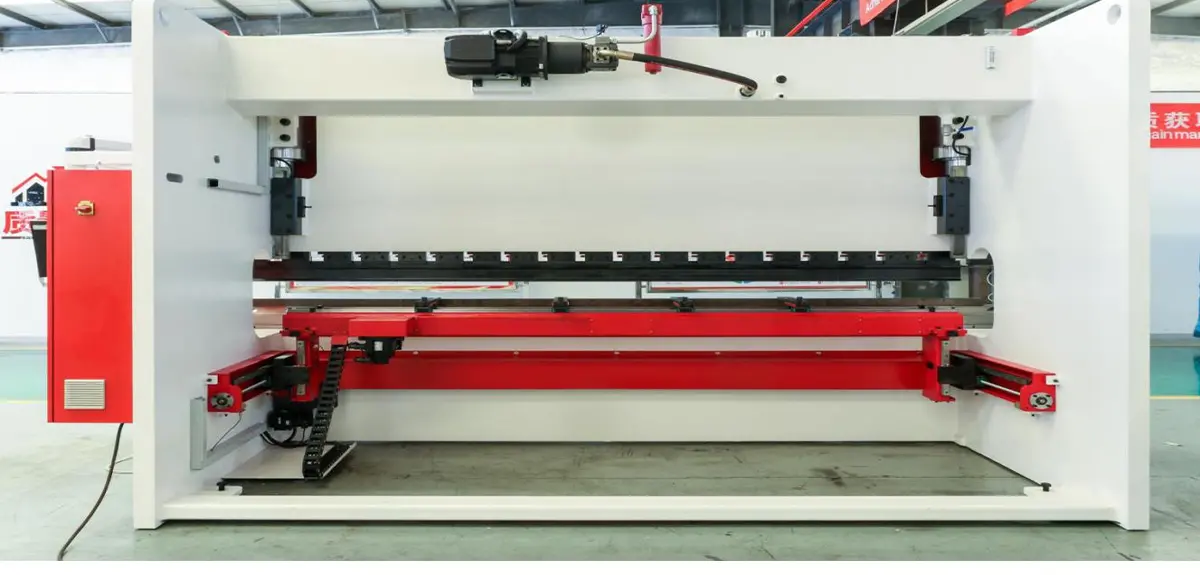

Precise Rear Positioning

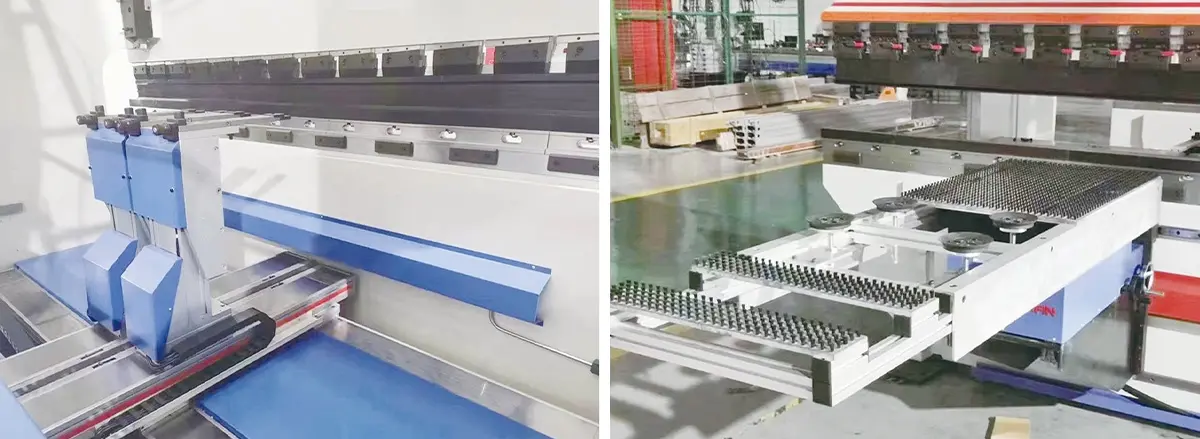

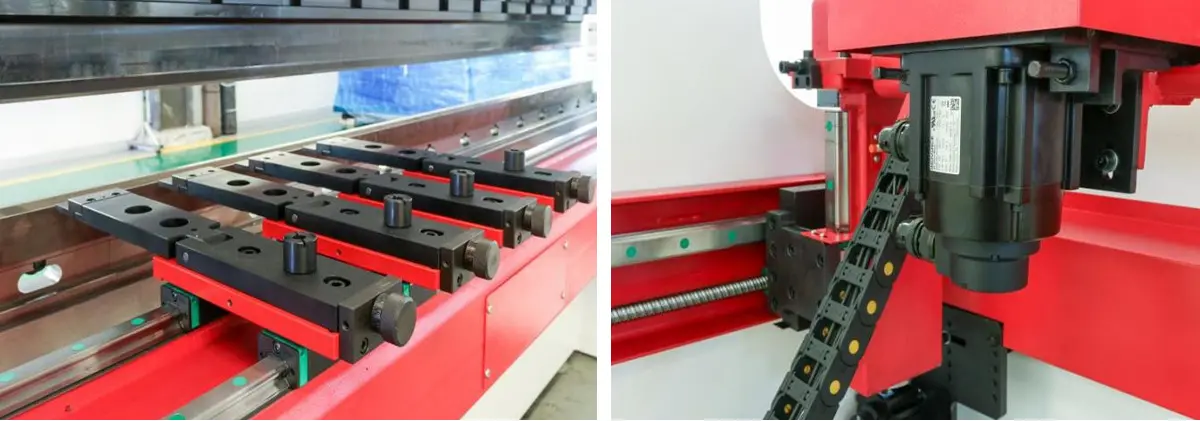

High precision rear positioning system, high-precision three position positioning, and precision adjustable material blocking foot. High quality rear stopper material, equipped with double linear guide rails, dust-proof sealing treatment, and precision ball screw. Therefore, it has fast speed, high load capacity, and high accuracy. The number of control axes can be selected from single axis X to X-R, X-R-Z 1-Z2, and X-X1-R-Z1-Z2.

CNC System: MT15

• Bending process, automatic calculation of opening height
• Expanded length calculation, X, R axis position calculation
• Deflection compensation mode can be selected in hydraulic or mechanical mode
• Automatic calculation of bending pressure, proportional control
• Curve analysis, preset debugging analysis
• Expandable angle correction database
• Active interference bending algorithm
• Mold safety area calculation
• Automatic large arc calculation



• Can store 1 million products
• Molds can store 100,000 sets individually
• Announced maximum cycle of 9999 times
• Maximum count of 9999
• Programmable speed for each unit
• Real-time display of mold graphics

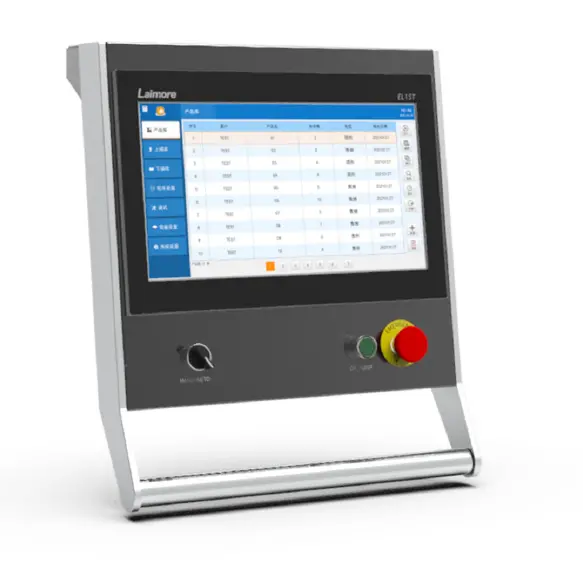

• 15.6'' LED true color LCD screen with friendly human-machine interface
• Menu-based operation is easy to learn and use
• High-sensitivity resistive touch screen, supports operation with gloves
• Linux operating system is stable and reliable, booting in only 4-5 S
• Contents are not lost in case of instant power failure



Main Components

Random Information & ccessories

Important Notes

• Lubricating Oil: VG46# anti-wear hydraulic oil
• 380V50HZ, voltage fluctuation is 10%--5%
• Temperature requirements: 0^oC - +40^oC
• Environmental humidity: relative humidity 20-80%RH (non-condensing)
• Away from strong vibration sources and electromagnetic interference
• An environment with little dust, no harmful and corrosive gases
• The foundation is prepared according to the supplier's foundation drawing
• The user should have personnel with secondary technical school or above (at least high school or above) for training and make long-term and stable work arrangements
