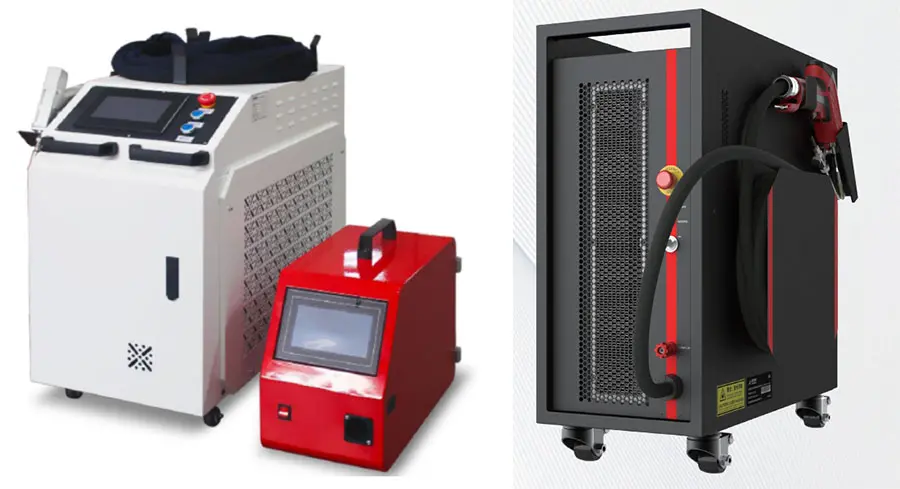

Product Display
This equipment has three functions of laser welding, cutting and cleaning, and can also be customized for a single function.
 |

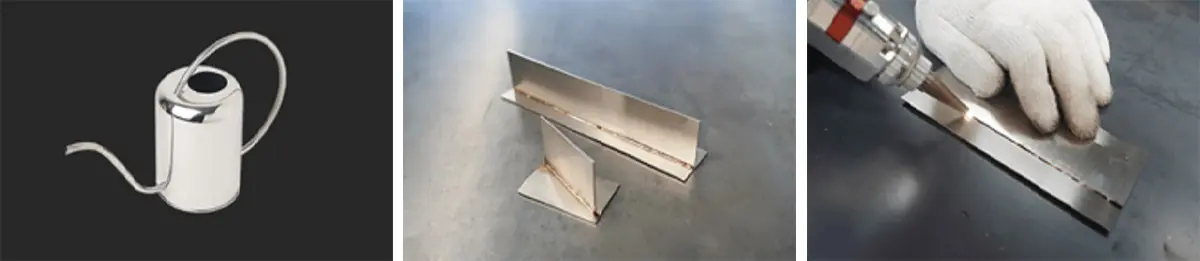

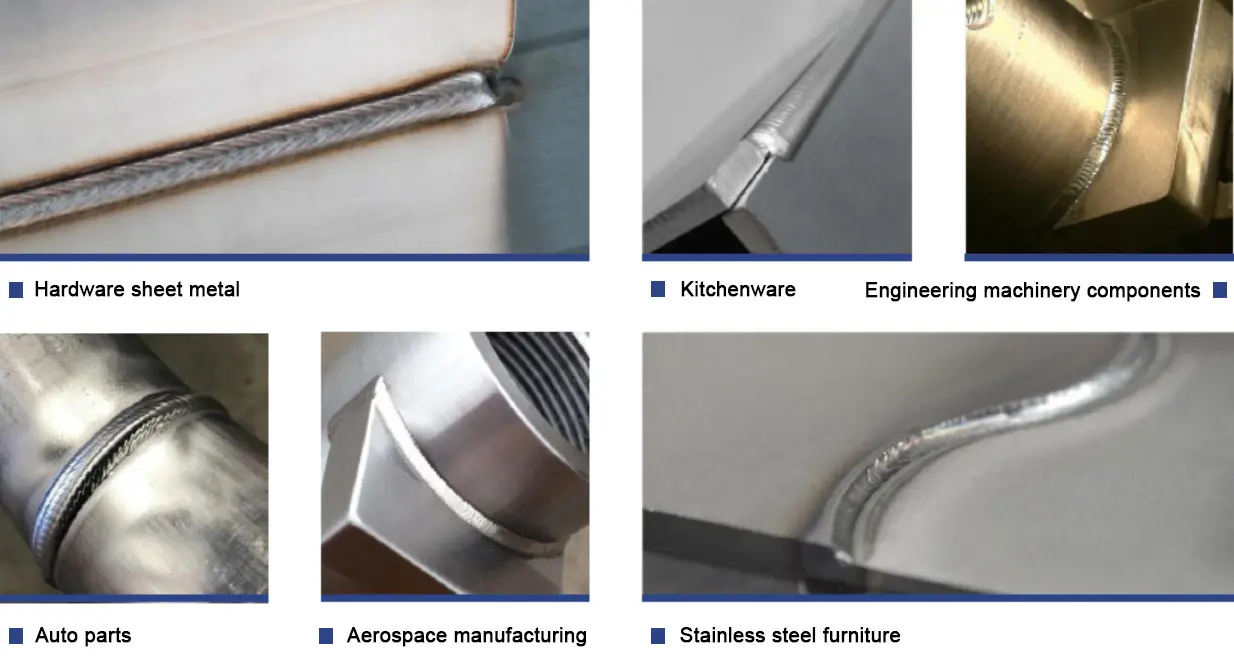

Sample Display
Advantage
| Laser welding equipment | |||||||
| Model | Water-cooled | Air-cooled | |||||
|
| RX-1000E | RX-1500E | RX-2000E | RX-3000E | RX-X2 | RX-X4 | RX-X5 |
| Laser power | 1000-3000W | 800-2200W | |||||
| Welding thickness | 0.5-1.5MM | 0.5-2.5MM | 0.5-3.5MM | 0.5-5MM | 0.5-2MM | 0.5-4MM | 0.5-5MM |
| Max.moving speed | 0.38-6m/min | 0.38-6m/min | |||||
| Cutting materials | Carbon steel, stainless steel, aluminum alloy | ||||||
Penetration Data
| Material | Aluminium | Stainless steel | Carbon steel | Galvanized Sheet |
| 1000W | 1.0 | 1.5 | 1.5 | 1.2 |
| 1500W | 1.2 | 2.0 | 2.0 | 1.5 |
| 2000W | 2.5 | 3.0 | 3.0 | 2.5 |
Key Attributes
| Industry-specific attributes | |||
| Laser Type | Fiber Laser | Place of Origin | Shandong, China |
| Cutting materials | Stainless steel, carbon steel, aluminum | Weight (KG) | 120-180 KG |
| Products handled | Welding of metal pipe and plate | Welding thickness | 0.5-5MM |
| Cooling Mode | Water-cooled/Air-cooled | Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Advertising Company |
| Condition | New | Brand Name | Ruixin |
| Description of core components | |||
| Laser Source Brand | MAX/RAYCUS | Machinery Test Report | Provided |
| Control System Brand | Chaoqiangweiye | Video outgoing-inspection | Provided |
| Mode of Operation | Pulsed | Core Components | Laser source, Welding joint |
| Application | Laser welding | Warranty of core components | 1 year |
| CNC or Not | Yes | Welding mode | Manual Handheld |
| Laser Head Brand | Chaoqiangweiye | Working Voltage | 220V 2 /380V 3 PHASE 50hz/60hz |
| Packaging and delivery | |||
| Packaging Details | Full-film packaging machine; anti-collision packaging edge; non-fumigation plywood wooden box. | ||
| Port | QINGDAO | ||
| Supply Ability | |||
| Supply Ability | 20 Piece/Pieces per Day | ||
