F Series - Fiber Laser Cutting Machine

Models: RX-3015F-3000
Brand name: Rui Xin laser
Laser power: 3000W
Processing format: 3000mm*1500mm
In the field of metal sheet metal processing, ruixin laser has been leading the deepening application of laser technology with continuous innovation. After years of market accumulation, stable products, fast service in the customer has formed a good word-of-mouth effect.

Contact US

Download

Product Introduction Download

Description

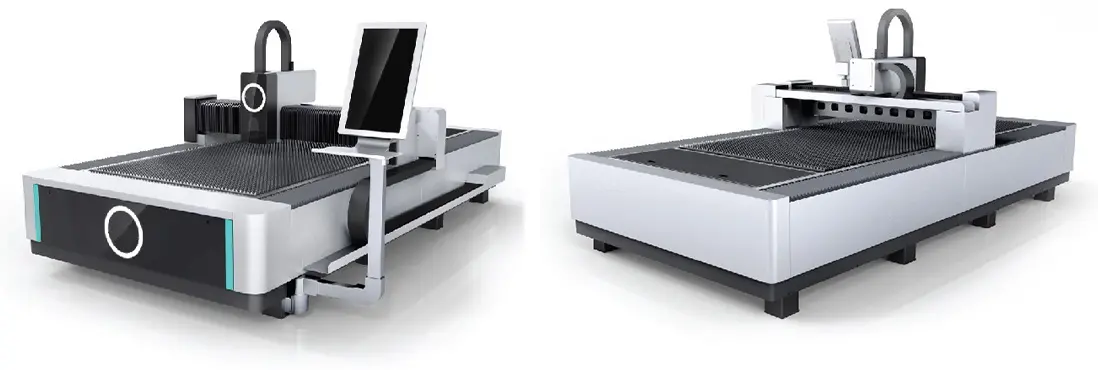

Product Display

Function Introduction

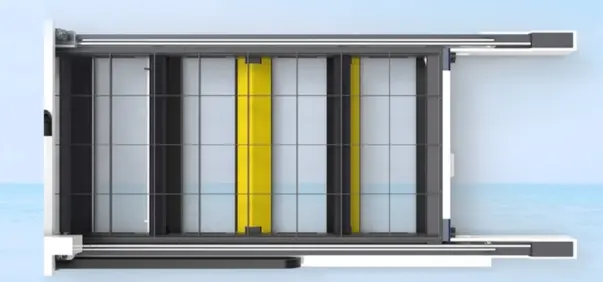

Bed structure

The bed is welded by rectangular tube, the internal reinforcing rib enhances the strength, tensile strength and stability of the bed, prevents the bed from deformation, and improves the resistance and stability.

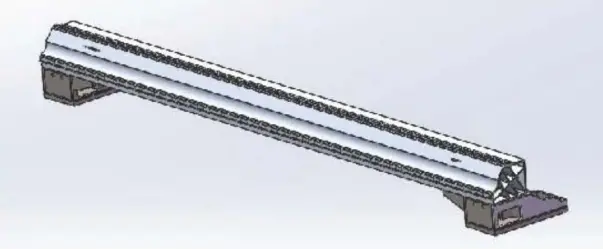

Beams

The reinforced structure of the light-duty aviation aluminum beam, stress relief, return aging treatment and precision processing to ensure the strength and stability.

Equipment Configuration List

Serial number	Name	Models	Quantity	Notes
1	Fiber laser cutting machine	RX-3015F-3000	1	Ruixin
2	Laser Source Brand	3000W	1	RAYCUS
3	Laser cutting head	BLT310	1	BOCHU
4	Control System	FSCUT2000	1	BOCHU
5	Machine tool accessories	Y-axis high speed servo drive system	2	FUJI
6		X axis high speed servo drive system	1	FUJI
7		zaxis high speed servo drive system	1	FUJI
8		Reducer	3	Shinbo, Japan
9		Guiderail Brand	1	HIWIN
10		Cross beam of aviation aluminium profile	1	Ruixin
11	Water Cooler	Hanli Chiller	1	China
12	Voltage Regulator	30KVA	1	（Select, customers can purchase their own; if we need to purchase products brand Shanghai Stable Peak）

Equipment Parameters

The scope and working range of the processing	Performance indicator parameters	The scope and working range of the processing	Performance indicator parameters
Processing Range	3050mmx1550mm	Power supply parameters
The Y-axis stroke	≥3050mm	Phase number	3
The X-axis stroke	≥1550mm	Power supply rated voltage	380V
The Z-axis stroke	≥100mm	Frequency	50Hz
Positioning accuracy	±0.03mm/m	Protection level of total power supply	IP54
Repeat positioning accuracy	±0.05mm/m
Maximum airspeed	100m/min

Note:

The accuracy of the workpiece depends on the type of workpiece, the pre-treatment, the size of the plate and the position of the plate in the working area.
The above parameters are subject to change, and the final technical parameters are subject to the actual order agreement.

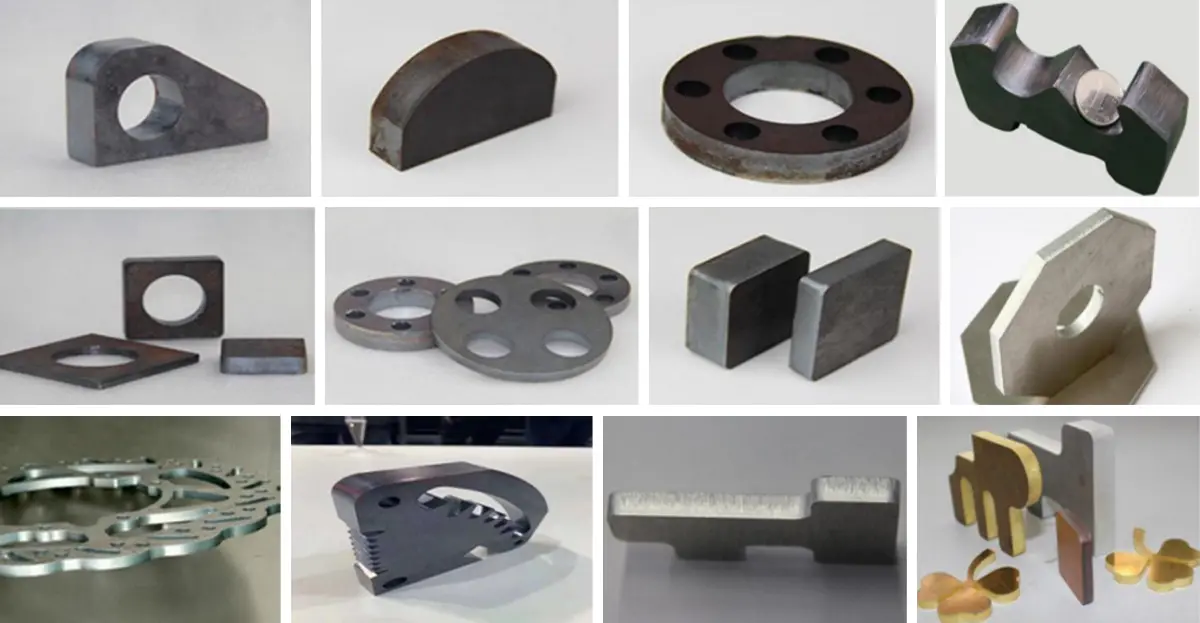

Cutting Sample Display

Suitable for cutting space: two-dimensional plane cutting;
Application Industry: Rail Transit, steam, engineering machinery, agriculture and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchen utensils and sanitary ware, decorative advertising, laser processing services and other machinery manufacturing and processing industries;
Cutting materials: carbon steel, stainless steel, aluminum alloy, brass, copper, pickling plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy;

Cutting Parameters

Material type	Thickness (mm)	Gas	Speed (m/min)	Laser power (W)	Cutting frequency (Hz)	Duty cycle (%)	Barometric pressure (bar)	Cutting height (mm)	Focus position	Nozzle type	Cutting effect


Carbon Steel (Q235B)	1	N2/Air	45~50	3000	5000	100	12~16	0.5	0	Single layer: 1.0
	2	N2/Air	21~23	3000	5000	100	12~16	0.5	0~-0.5	Single layer: 1.5
	3	N2/Air	6~12	3000	5000	100	12~16	0.5	-1~-1.5	Single layer: 3.0
		O2	3.9~4.1	3000	5000	100	0.6~0.9	0.8	4.5~5.5	Double layer: 1.2	Shiny
	4	O2	3.4~3.6	3000	5000	100	0.6~0.9	0.8	4.5~5.5	Double layer: 1.2
	6	O2	2.7~2.8	3000	5000	100	0.6~0.9	0.8	4.5~5.5	Double layer: 1.2
	8	O2	2.1~2.3	3000	5000	100	0.6~0.9	0.8	4.5~5.5	Double layer: 1.2
	10	O2	1.4~1.6	3000	5000	100	0.6~0.9	0.8	4.5~5.5	Double layer: 1.4	Matte finish
	12	O2	1~1.1	2200~2400	5000	100	0.6~0.9	1.5	2~3	Double layer: 3.0
	14	O2	0.9~0.95	2200~2400	5000	100	0.6~0.9	1.5	2~3	Double layer: 4.0
	16	O2	0.8~0.85	2200~2400	5000	100	0.6~0.9	1.5	2.5~3.5	Double layer: 4.0
	18	O2	0.7~0.72	2200~2400	5000	100	0.6~0.9	1.5	2.5~3.5	Double layer: 4.0
	20	O2	0.6~0.65	2200~2400	5000	100	0.6~0.9	1.5	2.5~3.5	Double layer: 4.0
	22	O2	0.55	2200~2400	5000	100	0.6~0.9	1.5	2.5~3.5	Double layer: 4.0
	25	O2	0.5	2200~2500	5000	100	0.6~0.9	1.5	2.5~4	Double layer: 5.0
Stainless steel (SUS304)	1	N2/Air	50~53	3000	5000	100	12~16	0.5	0	Single layer: 1.5	No residue (N2)
	2	N2/Air	23~25	3000	5000	100	12~16	0.5	0~-0.5	Single layer: 2.0
	3	N2/Air	10~12	3000	5000	100	12~16	0.5	-1~-1.5	Single layer: 3.0
	4	N2/Air	6~8	3000	5000	100	12~16	0.5	-2~-2.5	Single layer: 3.0
	6	N2/Air	2.9~3.1	3000	5000	100	12~16	0.5	-3.5~-4	Single layer: 3.0
	8	N2/Air	1.2~1.3	3000	5000	100	16~18	0.5	-5~-6	Single layer: 3.0
	10	N2/Air	0.75~0.8	3000	5000	100	16~18	0.5	-6.5~-7	Single layer: 4.0	A small amount of hanging slag
	12	N2/Air	0.5	3000	5000	100	16~18	0.5	-7.5~-8.5	Single layer: 4.0	A small amount of hanging slag
Aluminium	1	N2/Air	40~43	3000	5000	100	12~16	0.5	0	Single layer: 1.0-1.5
	2	N2/Air	16~18	3000	5000	100	12~16	0.5	0~-0.5	Single layer: 1.5-2.0
	3	N2/Air	8~10	3000	5000	100	12~16	0.5	0~-0.5	Single layer: 2.0-3.0
	4	N2/Air	5~6	3000	5000	100	12~16	0.5	-1~-1.5	Single layer: 3.0
	6	N2/Air	1.5~2	3000	5000	100	12~16	0.5	-2~-3	Single layer: 3.5-4.0
	8	N2/Air	1.6~0.7	3000	5000	100	16~18	0.5	-3~-4	Single layer: 4.0
Brass	1	N2/Air	37~40	3000	5000	100	12~16	0.5	0	Single layer: 1.0-1.5
	2	N2/Air	14~16	3000	5000	100	12~16	0.5	0~-0.5	Single layer: 1.5-2.0
	3	N2/Air	7~9	3000	5000	100	12~16	0.5	0~-0.5	Single layer: 2.0-3.0
	4	N2/Air	3~4	3000	5000	100	12~16	0.5	-1~-1.5	Single layer: 3.0
	6	N2/Air	1.2~1.5	3000	5000	100	12~16	0.5	-2~-3	Single layer: 3.5-4.0
	8	N2/Air	0.5~0.6	3000	5000	100	16~18	0.5	-3~-4	Single layer: 4.0
	Light Gray thickness of the material can be a long time, large-scale processing.
	Dark grey thickness of the material can be small batch processing, but as the material temperature rise, cutting pressure fluctuations, such as uneven composition of the plate fluctuations, the process may be unstable, higher power lasers are recommended.
	Gray-green thickness of the material can be cut off, can be proofing, not suitable for batch processing.
Notes	1. cutting data, 3000W laser output fiber core diameter of 50 microns;
	2. Raytools cutting head is used for the cutting data, the optical ratio is 100/125(collimation/focusing lens focal length) ;
	3. Cutting auxiliary gas: liquid oxygen (purity 99.99%) , liquid nitrogen (purity 99.999%) , air (oil and water filtration) ;
	4. The air pressure of the cutting data especially refers to the air pressure monitoring at the cutting head;
	5. Because of the different equipment configuration and cutting technology (machine tool, water cooling, environment, cutting gas nozzle and gas pressure, etc.) , this data is only for reference.

Note:

The gray-green mark parameters in the table are the proofing parameters, which are greatly affected by various factors in the actual processing. It is only suitable for small batch production, and mass production processing is not recommended. The use of higher power lasers is recommended.

Cost Analysis

Project	Name	Electricity consumption (kw/h)	Air Cut	Oxygen cutting	Nitrogen Cutting
Electricity consumption	Lasers	9	9	9	9
	Machine Tool Mainframe	5	5	5	5
	Water Chillers	3	3	3	3
	Dust blower	1.5	1.5	1.5	1.5
Average power consumption		18.5*60%=11.1	18.5*60%=11.1	18.5*60%=11.1	18.5*60%=11.1
Vulnerable parts			2.5 Per hour	2.5 Per hour	2.5 Per hour
Gas consumption			0	10	25
Total running cost			$2	$3.4	$4

If the cutting aid gas is a dry treated Compressed air. The cost is the actual air compressor running electricity + machine power + consumables (protective lenses, cutting nozzle)

Note:

1. The electricity and gas prices listed above are based on jinan prices, which vary from place to place.

2. Cutting other thickness of the board when the auxiliary gas consumption will be different.

Equipment supply, installation and service

1. Personnel training

Prior to the shipment of the equipment, the buyer may arrange 1-2 operators to our factory or showroom for training, the specific time with our customer service department confirmed. During the warranty period, the buyer can also apply for an operator (1-2 people) to our company for free training.
First installation and commissioning can be free remote network guidance, if you need on-site training, to increase the cost of travel aircraft labor. I hope you know.

2. Transport services

1 transport packaging. Damp-proof, rust-proof and shock-proof.
2 mode of transportation. The car was transported to the port. Our company is responsible for the freight and insurance.
A detailed packing list and quality certificate are attached to each package. The packing box is enclosed with the equipment instruction and all other documents and information. Packing list outside the packing box certificate inside the packing box.

3. Quality commitment and quality process Equipment design, manufacturing, testing, acceptance, packaging and transportation:

After the acceptance of the equipment, issue the equipment qualification certificate;
Select reliable packing and transportation methods to deliver the equipment to the port on time and in good condition.

4. Matching products with reliable quality at home and abroad, good reputation of brand-name products.

We assure you that the goods are brand new, unused, using the latest design and suitable materials to manufacture the equipment, and in all respects meet the quality, specifications and performance stipulated in the contract.
Our company guarantees that the system equipment, after the correct installation and adjustment, in the entire system after the operation of the specified time, to meet the requirements of the contract.
The warranty period is 12 months after the goods pass the inspection (except for wearing parts)
During the warranty period, if the quality or specification of the goods is found to be not in conformity with the contract, or if the goods are proved to be defective, the buyer shall have the right to file with our company and according to the inspection certificate issued by the quality and Technical Supervision Bureau and other departments.
Our company guarantees to deliver the goods to the appointed place strictly according to the delivery time stipulated in the contract, otherwise, we will compensate according to the corresponding terms of the contract. At the same time, the cost of the damage caused to the equipment during transportation shall be borne by our company.

The company guarantees a detailed and comprehensive inspection of the quality, specifications, performance, quantity and weight of the equipment before delivery and issues an inspection certificate to prove that the goods comply with the contract provisions.
