CR Series - High Speed Fiber Laser Cutting Machine Integrated With Plate And Tube

Saddle-shaped pipe type support beam is with high precision calibration,no deformation during 12m pipe cutting.
Self-centering jig system ensures stable process of conveying pipes,so that it can ensure highaccuracy and high quality of products.

Product Introduction Download

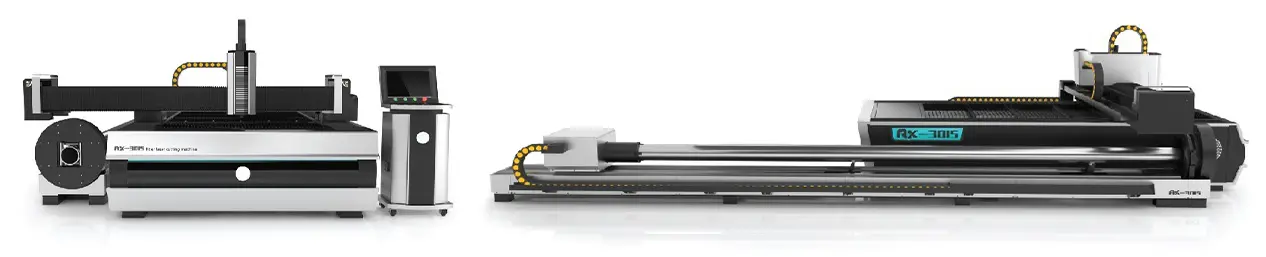

Product Display

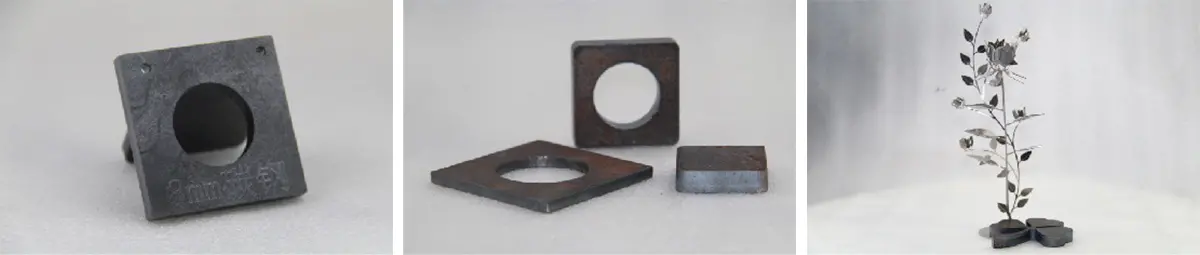

Sample Display

Specification

Laser cutting machine for steel plate and steel pipe
Model	RX-301PT	RX-302PT	RX-403PT	RX-404PT	RX-601PT	RX-602PT
Cutting range	6000Φ165mm & 30001500mm	6000Φ230mm & 30001500mm	6000Φ165mm & 40002000mm	6000Φ230mm & 40002000mm	6000Φ165mm & 60001500mm	6000Φ230mm & 60001500mm
Laser power	1000-6000W
Cutting Thickness	0-20mm
Max.moving speed	60m/min
Cutting materials	Stainless steel, carbon steel, aluminum, copper

Advantage

The laser head with auto focusing function is equipped, and the focus can be adjusted automa-tically.
Saddle shaped pipe support frame with precise scale, dual-purpose, multi-function cutting.
Professional cutting square tube, round tube, rectangular tube, oval tube, d-tube and hexagonal tube and other regular pipe.
The plate is used for cutting 0.5-20mm carbon steel plate, 0.5-14MM stainless steel plate, cold-rolled plate, electrolytic plate, 0.5-1mm4 aluminum alloy plate, 0.5-10mm brass and copper and other metal materials.

Key Attributes

Industry-specific attributes
Laser Type	Fiber Laser	Place of Origin	Shandong, China
Cutting materials	Stainless steel, carbon steel, aluminum, copper	Weight (KG)	2500-4000 KG
Products handled	Pipe Cutting&Steel plate cutting	Cutting Area	6000Φ165mm&6000Φ230mm
Cooling Mode	WATER COOLING	Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Advertising Company
Condition	New	Brand Name	Ruixin
Description of core components
Laser Source Brand	MAX/RAYCUS	Guiderail Brand	HIWIN
Control System Brand	Cypcut	chuck	fully pneumatic chuck
Mode of Operation	Pulsed	Machinery Test Report	Provided
Configuration	6-axis	Video outgoing-inspection	Provided
Application	LASER CUTTING	Warranty of core components	1 year
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Core Components	Motor, Bearing, Pump, Engine
Cutting Thickness	0-20mm	Equipment cutting accuracy	0.2mm
CNC or Not	Yes	Location accuracy	±0.03mm/m
Laser Head Brand	raytools/precetic	Repeat location accuracy	±0.02mm/m
Servo Motor Brand	YASKAWA/FUJI	Working Voltage	380V 3 PHASE 50hz/60hz
Packaging and delivery
Packaging Details	Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
Port	QINGDAO
Supply Ability
Supply Ability	60 Set/Sets per Month metal laser cutting machine
