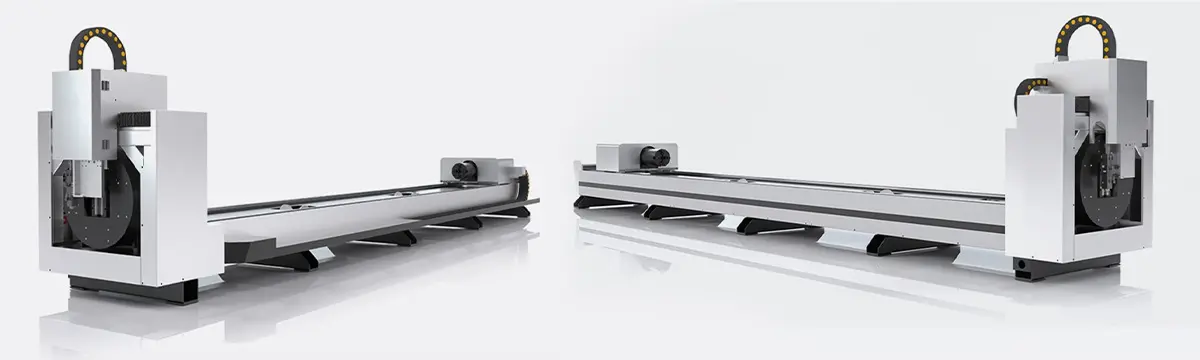

RA Series - Automatic Loading Laser Cutting Machine For Tube

Intelligent one-click automatic cutting, one-click start, unattended batch workpiece processing, improve production efficiency.
Interface real-time laser monitoring, production of the overall process, panoramic, simple oper-ation, finger stroke can control the entire cutting process.

Product Introduction Download

Product Display

Sample Display

Specification

Laser cutting machine (Pipe processing)
Model	RX-60200RA	RX-60165R	RX-60230R
Cutting range	2000-12000mm	6000*Φ165mm	6000*Φ230mm
Laser power	1000-20000W	1000-6000W
Cutting Thickness		0-20mm
Max.moving speed	100m/min	60m/min
Cutting materials		Stainless steel, carbon steel, aluminum, copper

Advantage

Intelligent one-click automatic cutting, one-click start, unattended batch workpiece processing, improve production efficiency.
Interface real-time laser monitoring, production of the overall process, panoramic, simple oper-ation, finger stroke can control the entire cutting process.
The equipment has the error detection of pipe cutting, with automatic correction function, to ensure the cutting accuracy.Saddle shaped pipe support frame with precise scale, dual-purpose, multi-function cutting.
The clamping is convenient and labor-saving, no wear and tear, and the clamping degree of the workpiece is controlled by adjusting the air pressure, so as to ensure the smoothness of feeding and the precision of cutting.

Key attributes

Industry-specific attributes
Laser Type	Fiber Laser	Place of Origin	Shandong, China
Cutting materials	Stainless steel, carbon steel, aluminum, copper	Weight (KG)	2500-4000 KG
Products handled	Pipe Cutting	Cutting Area	6000Φ165mm&6000Φ230mm
Cooling Mode	WATER COOLING	Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Advertising Company
Condition	New	Brand Name	Ruixin
Description of core components
Laser Source Brand	MAX/RAYCUS	Guiderail Brand	HIWIN
Control System Brand	Cypcut	chuck	fully pneumatic chuck
Mode of Operation	Pulsed	Machinery Test Report	Provided
Configuration	5-axis	Video outgoing-inspection	Provided
Application	LASER CUTTING	Warranty of core components	1 year
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Core Components	Motor, Bearing, Pump, Engine
Cutting Thickness	0-20mm	Equipment cutting accuracy	0.2mm
CNC or Not	Yes	Location accuracy	±0.03mm/m
Laser Head Brand	raytools/precetic	Repeat location accuracy	±0.02mm/m
Servo Motor Brand	YASKAWA/FUJI	Working Voltage	380V 3 PHASE 50hz/60hz
Packaging and delivery
Packaging Details	Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
Port	QINGDAO
Supply Ability
Supply Ability	60 Set/Sets per Month metal laser cutting machine for sale
